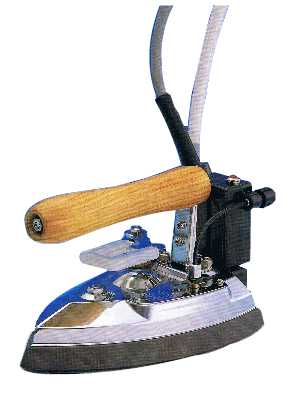

C-81/B8-TN |
 |
| Feathure |
|
1.
|
You can use good
steam |
| |
The steam sent from
the boiler comes into the steam chamber of the iron. It
will be warmed and dried by the heat of the iron, and
then, sent forth from the pressing face through a valve.
The waterdropless dried steam makes efficiency and
finish better. |
|
2. |
Fitted with
Temperautre Regulator |
| |
The temperature can
be adjusted properly to any kind of fabric. |
| |
The regulation range is from 110。to
200。degrees
centigrade. |
| |
|
| Description |
| Model |
C81 |
B8-TN |
| Weight |
2.6kg |
2.7kg |
| Wattage |
1000W |
1000W |
| Length |
205mm |
205mm |
| Width |
136mm |
136mm |
| Material of Base |
Aluminium TUFRAM finsih |
Aluminium TUFRAM finish |
| Use |
For Finish |
For Finish |
|
|
|
|
|
|
|
| How To Use |
|
1.
|
Attach the rubber hose to the hose nipple, and connect it with
the boiler. When a Teflon hose is used, remove the nipple, and
connect it with a joint. |
| 1 |
| 2.
|
Connect the cord with the power source, and push up the iron
switch knob. The iron will reach a temperature(160。C)
suitable for use in a matter of 5 minutes. |
| 2 |
|
3.
|
When
the temperature regulating lever is turned to the right, the
temperature goes up (max. 200。C),
and when turned to the left, it goes down (min.110。C).
It will not become high or low immediately after the lever is
turned. Just 2-3 minutes and check it up. |
| 3 |
|
|
4.
|
Open the boiler
valve to the minimum required. |
|
5.
|
When
the iron is used at a high temperature or after the valve has
been closed for more than 5 minutes, use it after opening the
valve on the trestle. |
| 5 |
|
6.
|
After use, close
the boiler valve, discharge steam by opening the iron valve, and
then, switch off the iron. |
|
